Review – AORUS GeForce RTX 5080 INFINITY WOOD 16G
Specificatii
| NVIDIA GeForce RTX 4080 SUPER | NVIDIA GeForce RTX 5080 | GIGABYTE GeForce RTX 5080 Gaming OC 16G | ASUS ROG Astral GeForce RTX 5080 | AORUS GeForce RTX 5080 INFINITY WOOD 16G | |
|---|---|---|---|---|---|
| Core | AD103 | GB203 | GB203 | GB203 | GB203 |
| GPU clock | 2295 MHz | 2295 MHz | 2295 MHz | 2295 MHz | 2295 MHz |
| GDDR clock | 1438 MHz | 1875 MHz | 1875 MHz | 1875 MHz | 1875 MHz |
| Boost clock / Max clock | 2550 MHz | 2617 MHz | 2730 MHz | 2760 MHz | 2805 MHz |
| Memory | 16 GB | 16 GB | 16 GB | 16 GB | 16 GB |
| Type | GDDR6X | GDDR7 | GDDR7 | GDDR7 | GDDR7 |
| Bus | 256 bit | 256 bit | 256 bit | 256 bit | 256 bit |
| Shader processors | 10240 | 10752 | 10752 | 10752 | 10752 |
| ROPs | 112 | 112 | 112 | 112 | 112 |
| Tensor cores | 320 | 336 | 336 | 336 | 336 |
| RT cores | 80 | 84 | 84 | 84 | 84 |
| Process | 5nm | ||||
| Power | 16 pin 12VHPWR | 16 pin 12V-2×6 | 16 pin 12V-2×6 | 16 pin 12V-2×6 | 16 pin 12V-2×6 |
| TDP | 320 W | 360 W | 360 W | 360 W | 360 W |
| Die size | 379 mm2 | 378 mm2 | 378 mm2 | 378 mm2 | 378 mm2 |
| Transistor count | 45.9 billion | 45.6 billion | 45.6 billion | 45.6 billion | 45.6 billion |
Aceasta integreaza nucleul GB203, produs in litografie 5 nm EUV (TSMC 4N) in fabricile TSMC din Taiwan, acesta fiind echipat cu 45.6 miliarde de tranzistori, dispusi pe o suprafata de 378 mm2. Nucleul grafic este echipat cu 10752 shadere, 336 Tensor cores, 84 RT cores si 112 ROPs, RTX 5080 oferind in momentul de fata cel mai bun echilibru intre performanta, consum, nivel de zgomot si pret, din punctul meu de vedere.

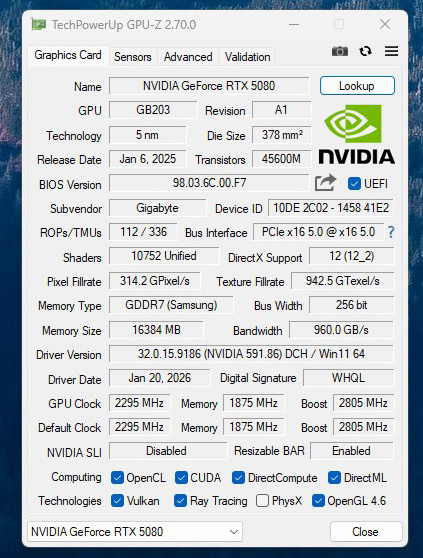

AORUS GeForce RTX 5080 INFINITY WOOD 16G are nucleul grafic tactat la o frecventa de baza de 2295MHz, frecventa de boost declarata fiind de 2805 MHz. Memoria RAM ruleaza la 1875MHz, comunicand cu nucleul grafic printr-o magistrala de 256 bit. Cu alte cuvinte, cea mai sus tactata implementare de RTX 5080 pe care am pus mana noi pana acum!
