Review – SPARKLE Intel Arc B580 ROC Luna OC Ultra
Specificatii
| Sparkle Intel Arc A750 ORC OC | Sparkle Intel Arc A770 ROC OC 16GB | Sparkle Intel Arc A770 TITAN OC 16GB | SPARKLE Intel Arc B580 ROC Luna OC Ultra | |
|---|---|---|---|---|
| Core | ACM-G10 | ACM-G10 | ACM-G10 | BMG-G21 |
| GPU clock | 2200 MHz | 2100 MHz | 2100 MHz | 2800 MHz |
| GDDR clock | 2000 MHz | 2187 MHz | 2187 MHz | 2375 MHz |
| Boost clock | 2200 MHz | 2100 MHz | 2100 MHz | 2800 MHz |
| Memory | 8192 MB | 16384 MB | 16384 MB | 12288 MB |
| Type | GDDR6 | GDDR6 | GDDR6 | GDDR6 |
| Bus | 256 bit | 256 bit | 256 bit | 192 bit |
| Shader processors | 448 | 512 | 512 | 2560 |
| ROPs | 112 | 128 | 128 | 80 |
| Tensor cores | - | - | - | - |
| RT cores | 28 | 32 | 32 | 20 |
| Process | 6 nm | 6 nm | 6 nm | 5 nm |
| Power | 8 + 8 pin | 8 + 8 pin | 8 + 8 pin | 8 + 8 pin |
| TDP | 225 W | 225 W | 225 W | 190 W |
| Die size | 406 mm2 | 406 mm2 | 406 mm2 | 272 mm2 |
| Transistor count | 21.7 billion | 21.7 billion | 21.7 billion | 19.6 billion |

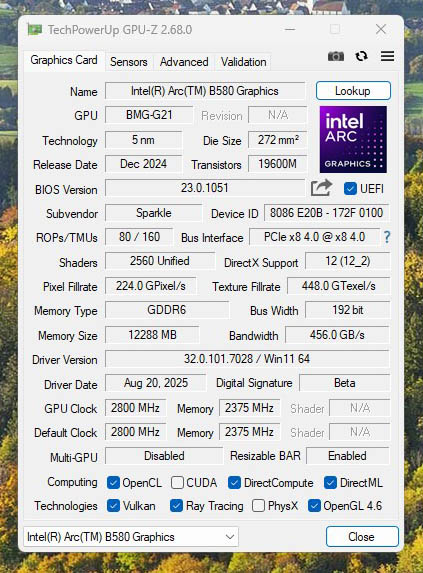

SPARKLE Intel Arc B580 ROC Luna OC Ultra integreaza nucleul BMG-G21, produs in litografie 5 nm in fabricile TSMC din Taiwan. Acesta este echipat cu 2560 de shadere, 20 de nuclee pentru raytracing, respectiv 80 ROPs.
Nucleul grafic are o frecventa de 2800 MHz, cu 60MHz mai mult decat in cazul implementarii ASRock, in timp ce memoria RAM ruleaza la 2375MHz. SPARKLE Intel Arc B580 ROC Luna OC Ultra este echipata cu 12GB GDDR6, care comunica cu nucleul grafic printr-o magistrala de 192 bit.
Producatorul specifica un TDP de 190W, placa grafica fiind echipata cu doi conectori cu 8 pini. Pretul recomandat este de 249 USD, SPARKLE Intel Arc B580 ROC Luna OC Ultra fiind disponibila in magazinele din Romania in acest moment pentru ~1399 RON.
